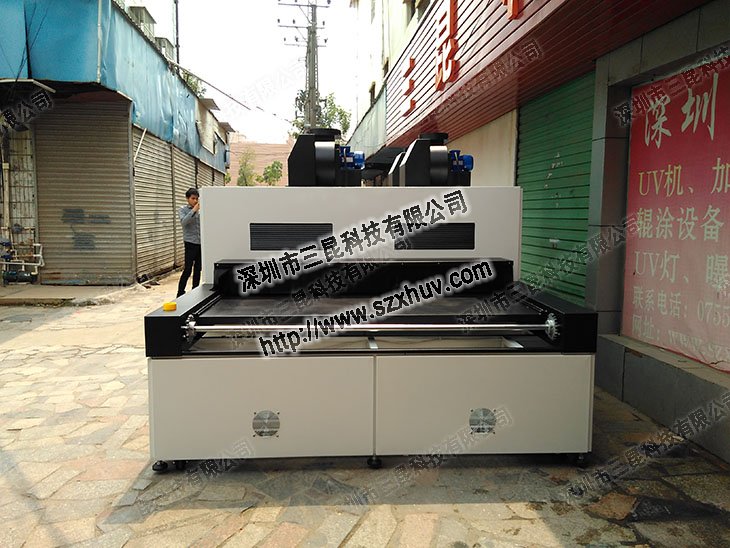

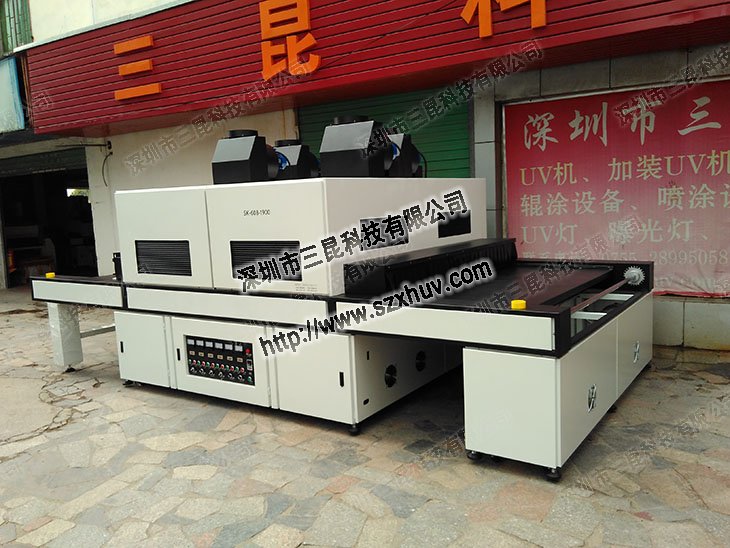

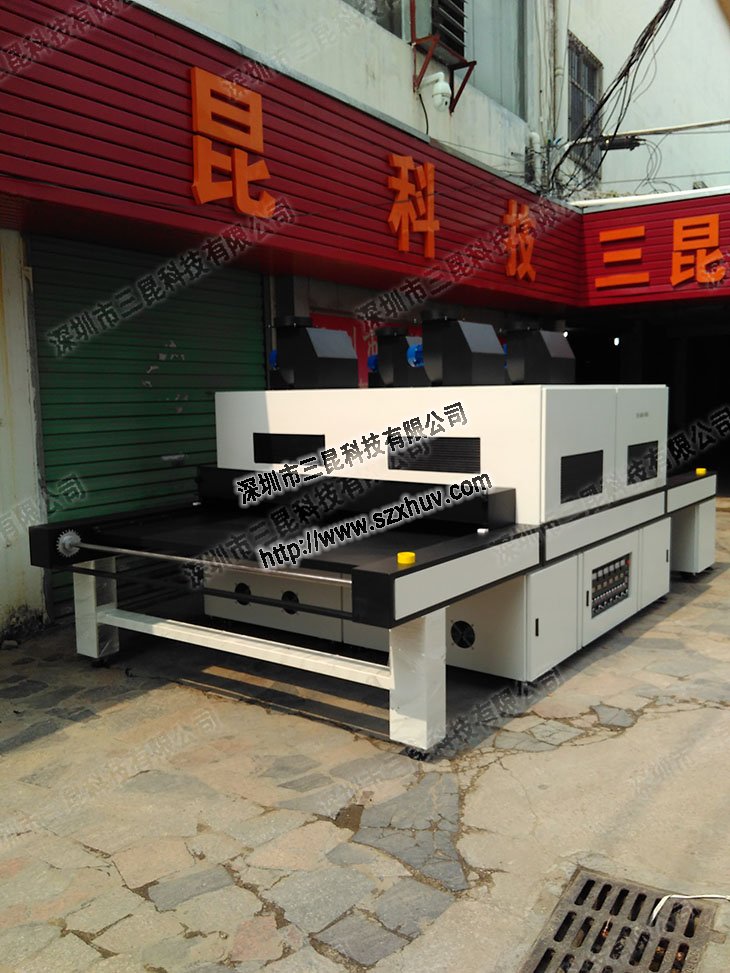

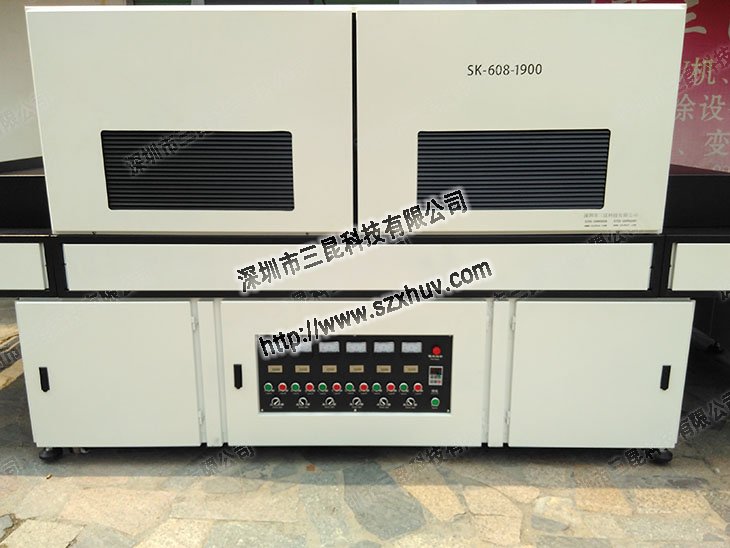

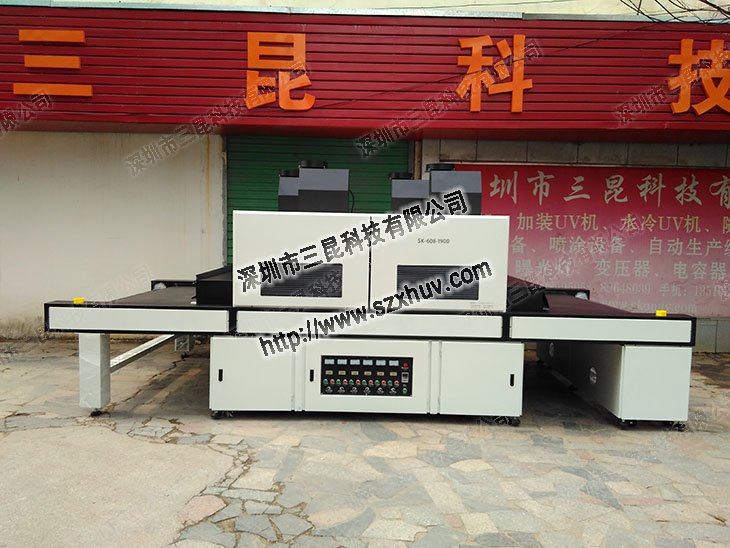

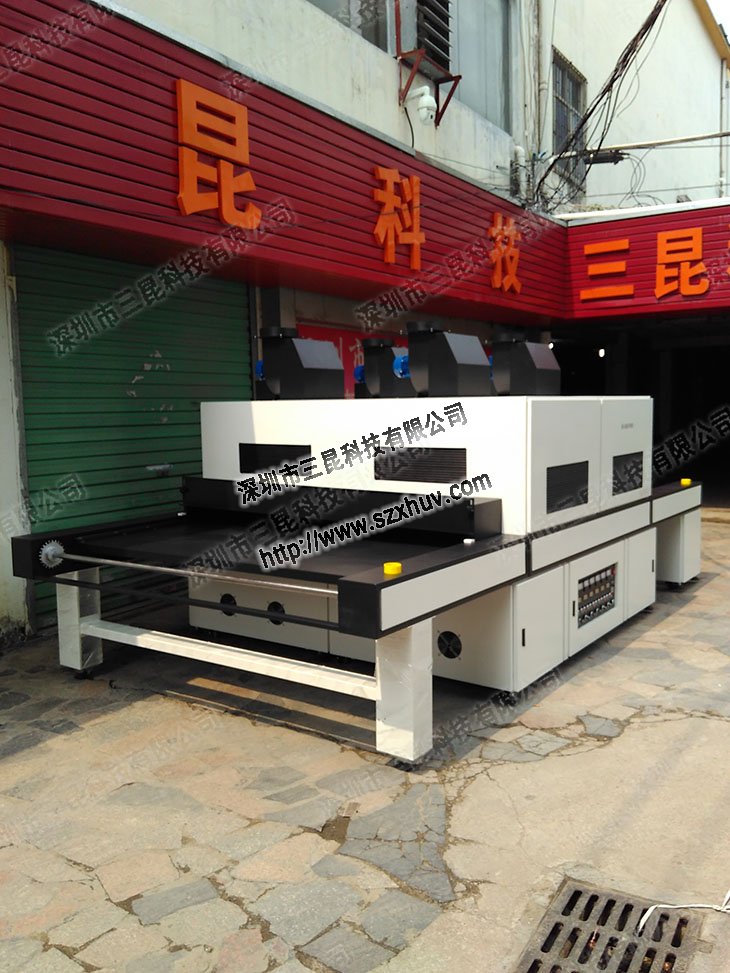

【大功率uv固化機】超寬1.9米輸送面適用于各種尺寸產品SK-608-19

品牌：SunKun(三昆)

型號：SK-608-1900

訂購：不限數量

價格：面議

⒈訂購熱線：13823369867(李先生) 1753480168

⒉業務咨詢：13913507139(黃永貴) 2851085006



⒈市場部：13510246266(黃總經理) 289604232

1、UV燈功率:8.0kw*4支、3.0kw*2支(UV汞燈)
2、UV燈總長:8.0kw:1050mm、3.0kw:400mm
3、UV波段主波峰:365nm
4、UV燈累時器配置
5、強弱光強調節:50%、100%
6、鈑金燈箱安裝進口插片反射器
7、UV燈高低、距離、角度均可調節
8、采用上排風系統
9、輸送材料:鏈條穿不銹鋼方管
10、輸送寬度:1900mm
11、輸送速度:0.5~6m/min(變頻器調速)
12、入口高度:150mm
13、電源:380VAC 50HZ

Technical Parameters:
1, UV lamp power: 8.0kw * 4, 3.0kw * 2 (UV mercury lamp)
2, the total length of the UV lamp: 8.0kw: 1050mm, 3.0kw: 400mm
3, UV band main peak: 365nm
4, UV light timer configuration
5, strong and weak light intensity adjustment: 50%, 100%
6, sheet metal light box installation of imported insert reflector
7, UV lamp height, distance, angle can be adjusted
8, using the upper exhaust system

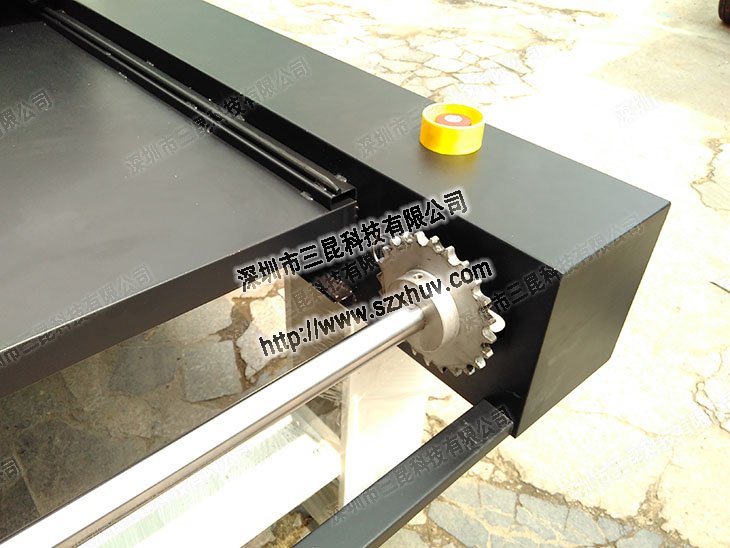

9, conveying materials: chain wear stainless square tube
10, conveying width: 1900mm
11, conveying speed: 0.5~6m/min (inverter speed regulation)
12, the entrance height: 150mm
13, power: 380VAC 50HZ

1、百葉窗、三合板等。
2、側板等。
3、汽車內飾件（桃木）、PC面板、電動自行車、汽車大燈、鋼管、硅橡膠等所有。
4、電子行業：微電機、電路板、液晶開關、機箱外殼。
5、印刷行業：絲印、膠印、柔印、噴繪、數碼印刷等所有印刷范圍，產品立體感強，外觀漂亮新穎。
6、特種行業：化工、光學反應、UV膠水、UV粘接等行業。
想了解更多相關信息，可以咨詢深圳市三昆科技有限公司，謝謝！

The main purpose:
1, blinds, plywood, etc.
2, side panels and so on.
3, automotive interior parts (mahogany), PC panels, electric bicycles, car headlights, steel pipes, silicone rubber and so on.
4, the electronics industry: micro-motors, circuit boards, LCD switches, chassis enclosures.
5, printing industry: silk screen, offset printing, flexo printing, inkjet, digital printing and other printing range, the product has a strong sense of

three-dimensional, beautiful and novel appearance.
6, special industries: chemical, optical reaction, UV glue, UV bonding and other industries.
For more information, you can consult Shenzhen Sankun Technology Co., Ltd., thank you!
